Gasket tape & Ceramic sealing tape

Product Details

Our high-quality gasket tapes will help you to achieve the highest airtightness requirements. Our gasket tapes are characterised by the easy handling and a solvent-free adhesive. Tested to DIN EN ISO 846 they are suitable for usage in ventilation systems according to VDI 6022.

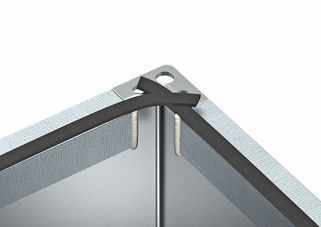

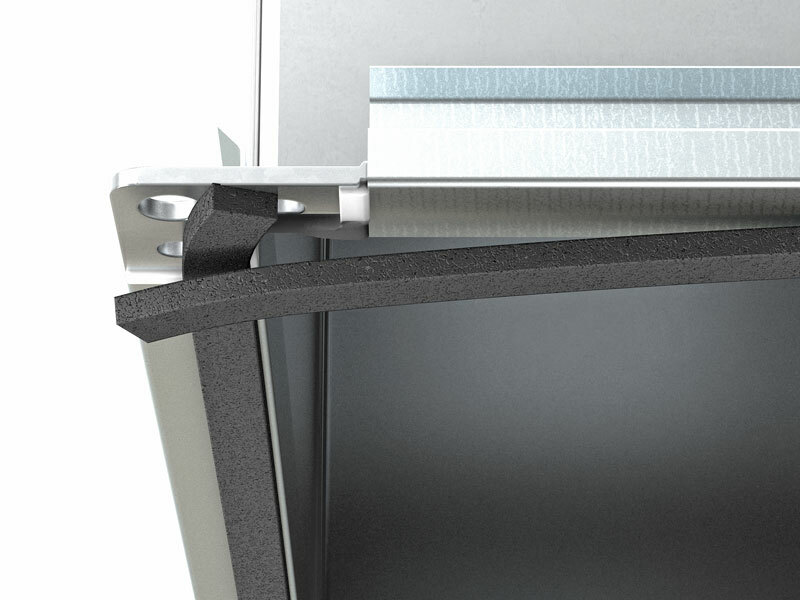

Application Gasket tape

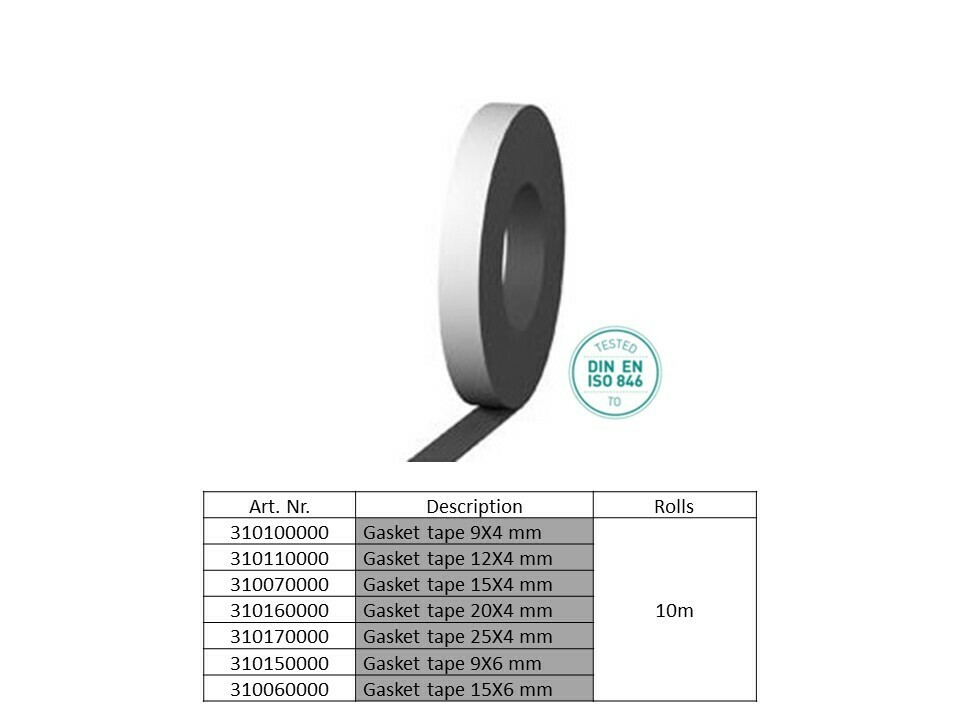

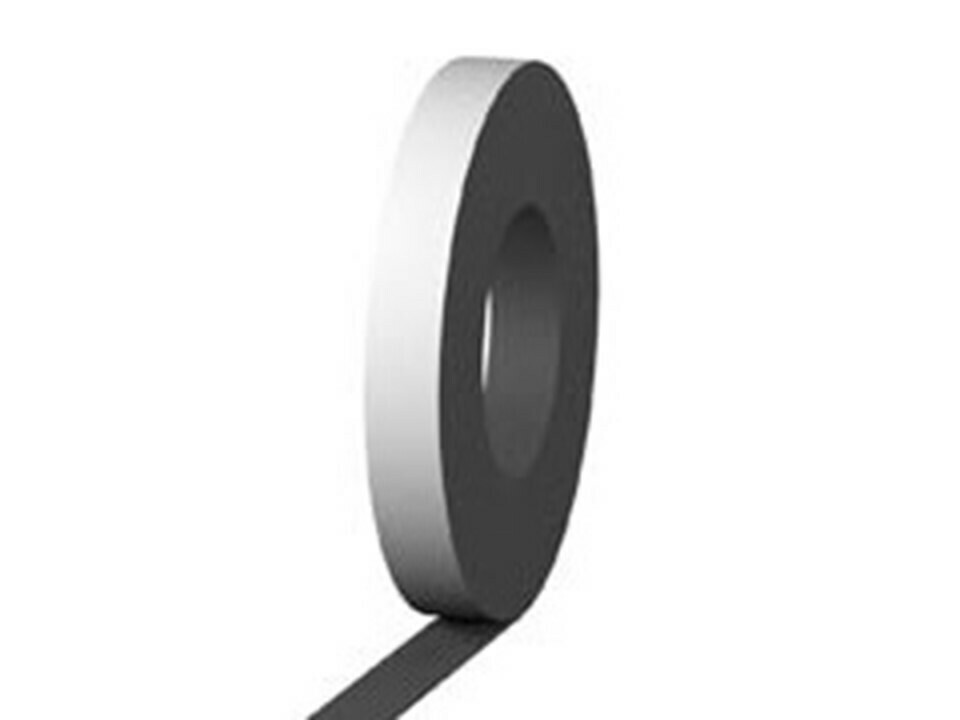

Gasket tape

Characteristics:

  • Material: closed-cell polyethylene foam
  • Self-adhesive on one-side
  • Without firmly laminated silicone film
  • Adhesive: Synthetic rubber, solvent-free
  • Colour: anthracite grey
  • Temperature resistance: from – 30°C to + 80°C
  • Gebhardt gasket tape meets the requirements of DIN EN ISO 846


Installation recommendations:

  • For 20 flange: 15x4mm gasket tape
  • For 30 flange: 20x4mm gasket tape
  • For 40 flange: 25x4mm gasket tape
  • Wrinkle-free, flash to the edge of the duct
  • Cross bonded at the corners

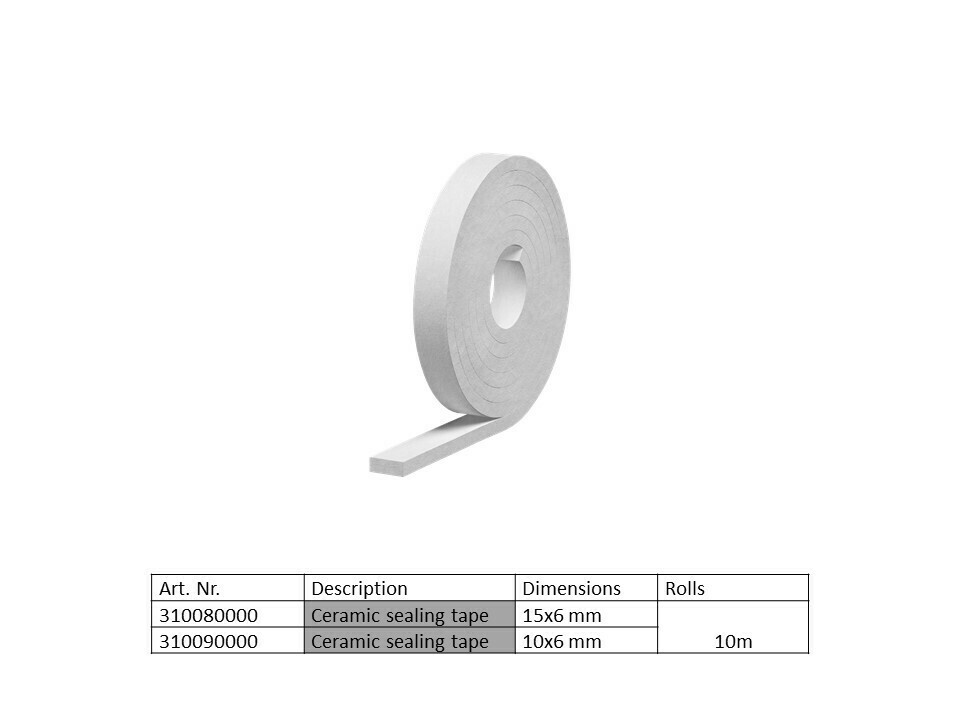

Ceramic Sealing tape

Specifications:

  • For sealing smoke extraction and fire rated ductwork
  • Ceramic Sealing Tape
  • One-sided self-adhesive
  • Temperature resistant up to +1.200°C


PTFE Gasket tape

Specifications:

  • Self-adhesive on one side
  • Colour: white
  • Resistant to a wide range of chemicals
  • Resistant to ageing and weathering/UV-resistant
  • Temperature resistance: -240°C to +270°C short-term up to +310°C


More Product Information
Product Data Sheet: Gasket & Sealing tape
Download PDF - Gasket tape
Download PDF - Ceramic sealing tape
Download PDF - PTFE Gasket tape
