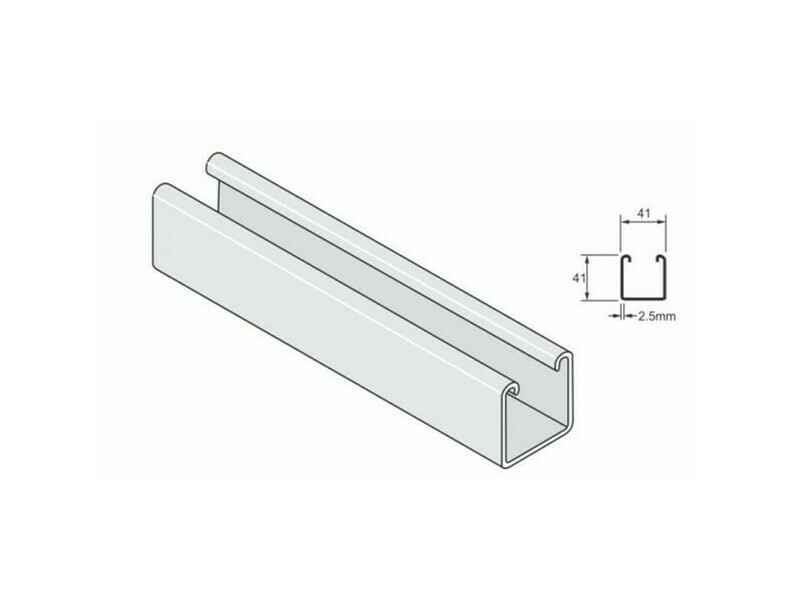

Plain Channel

The Channels form the most basic component of the entire system. These are used to support, suspend and mount the metal structures. Characterised as plain due to its profile.

Strut manufactured form steel BSEN 10326 Grade SD2809B.

Strut Manufactured in accordance with BS6946 1988.

Standard Slott Sizes 28x14 @ 50mm centres or 25x11 @ 50mm centres.

Non-Standard finishes available on request.

Standard lengths manufactured 3mtr, and 6mtr, cut lengths available on request.

The standard stock profile of channel is:

PG=Pre-galvanised mild steel to BS EN 10326

GA= Hot dip galvanised after manufacture to BS EN ISO 1461

Other finishes available:

SS=Stainless steel 316

EC=Epoxy painted finish
